普洱茶-硒掺杂碳量子点和单质硒的同时制备及其在Fe3+检测中的应用

胡伟英, 叶锡光, 陈忠正, 张媛媛, 姚向荣, 林晓蓉, 李斌

胡伟英,叶锡光,陈忠正,等. 普洱茶-硒掺杂碳量子点和单质硒的同时制备及其在Fe3+检测中的应用[J]. 食品工业科技,2023,44(3):316−324. doi: 10.13386/j.issn1002-0306.2022040270.
引用本文: 胡伟英,叶锡光,陈忠正,等. 普洱茶-硒掺杂碳量子点和单质硒的同时制备及其在Fe3+检测中的应用[J]. 食品工业科技,2023,44(3):316−324. doi: 10.13386/j.issn1002-0306.2022040270.
HU Weiying, YE Xiguang, CHEN Zhongzheng, et al. Simultaneous Preparation of Pu-erh Tea-selenium-doped Carbon Quantum Dots and Elemental Selenium and Its Application in Fe3+ Detection[J]. Science and Technology of Food Industry, 2023, 44(3): 316−324. (in Chinese with English abstract). doi: 10.13386/j.issn1002-0306.2022040270.
Citation: HU Weiying, YE Xiguang, CHEN Zhongzheng, et al. Simultaneous Preparation of Pu-erh Tea-selenium-doped Carbon Quantum Dots and Elemental Selenium and Its Application in Fe3+ Detection[J]. Science and Technology of Food Industry, 2023, 44(3): 316−324. (in Chinese with English abstract). doi: 10.13386/j.issn1002-0306.2022040270.

普洱茶-硒掺杂碳量子点和单质硒的同时制备及其在Fe3+检测中的应用

基金项目: 国家自然科学基金青年科学基金项目(31901652);现代农业产业技术体系专项资金(CARS-19);广州市科技计划项目(202102020236)。
详细信息
    作者简介:

    胡伟英(1996−),女,硕士研究生,研究方向:食品纳米技术,E-mail:sp_hwyi@163.com

    叶锡光(1992−),男,博士研究生,研究方向:食品纳米技术、化学传感分析,E-mail:xiguangye@foxmail.com

    通讯作者:

    林晓蓉(1986−),女,博士,讲师,研究方向:食品纳米技术、茶叶深精加工,E-mail:xiaoronglin@scau.edu.cn

    李斌(1960−),女,博士,教授,研究方向:茶叶精深加工、天然产物功能特性,E-mail:bli@scau.edu.cn

  • 中图分类号: TS272

Simultaneous Preparation of Pu-erh Tea-selenium-doped Carbon Quantum Dots and Elemental Selenium and Its Application in Fe3+ Detection

  • 摘要: 目的:为探讨普洱茶-纳米硒制备掺杂型碳量子点的可行性及其相关特性,实现水体系中Fe3+的快速检测。方法:以普洱茶水提取物稳定分散的普洱茶-硒原子为掺杂原子,采用水浴法,通过优化反应温度和时间,同时制备出普洱茶-硒掺杂碳量子点(Pu-erh tea nano-selenium doped carbon quantum dots,PT-Se-CQDs)和单质硒两种物质;采用紫外-可见吸收光谱和荧光光谱等技术表征PT-Se-CQDs的紫外-可见吸收特性和荧光强度,采用透射电子显微镜、X射线光电子能谱及X射线衍射等技术表征其形态形貌、元素组成及结构特性;并以PT-Se-CQDs为荧光探针构建荧光传感器,用于水体系中Fe3+检测。结果:当反应温度100 ℃、反应时间10 h时,可同时制备得量子产率为3.41%、平均直径约为3.1 nm的类球形PT-Se-CQDs和单质硒。Fe3+对PT-Se-CQDs具有强荧光静态猝灭效应,当Fe3+浓度为0~300 μmol/L时,比率荧光强度(F/F0)与Fe3+浓度呈良好的线性关系(R2>0.99),Fe3+的检出限低至0.2621 μmol/L;纯净水和矿泉水中Fe3+含量测定的加标回收率分别为90.93%~104.56%和84.53%~113.90%,RSD小于8.15%和4.00%。结论:本研究制备的PT-Se-CQDs对Fe3+具有高选择性和灵敏度,以此建立的检测Fe3+方法简单、快速,具有良好的应用前景。
    Abstract: Object: To prepare Pu-erh tea nano-selenium doped carbon quantum dots (PT-Se-CQDs) for the rapid detection of Fe3+ in the water system and to profile their characteristics. Method: In this study, PT-Se-CQDs and elemental selenium were prepared simultaneously in a water-bath by optimizing the reaction temperature and time. The ultraviolet-visible absorption and fluorescent intensity of PT-Se-CQDs were subsequently analyzed by the ultraviolet-visible absorption spectroscopy and fluorescence spectroscopy. And their morphology, elemental composition, and structural characteristics were characterized by transmission electron microscopy, X-ray photoelectron spectroscopy, and X-ray diffraction, respectively. On this basis, a novel fluorescence sensor for the detection of Fe3+ in the aqueous system was constructed using PT-Se-CQDs. Result: PT-Se-CQDs in a spherical shape with a quantum yield of 3.41%, an average particle size of about 3.1 nm as well as elemental selenium were successfully prepared simultaneously via the reaction in a boiling water bath at 100 °C for 10 h. In addition, a strong static fluorescence quenching effect on PT-Se-CQDs was observed in the presence of Fe3+. Accordingly, Fe3+ in the range of 0~300 μmol/L was successfully detected using PT-Se-CQDs as a fluorescence sensor with a good linear relationship between the concentration of Fe3+ and the ratio of fluorescence intensity (F/F0) of PT-Se-CQDs (R2>0.99) and a limit of detection of 0.2621 μmol/L. When this method was applied to detect Fe3+ in real water samples, satisfactory standard recovery rates of Fe3+ in pure water and mineral water of 90.93%~104.56% and 84.53%~113.90% with the RSD less than 8.15% and 4.00% were obtained, respectively. Conclusion: The preparation of PT-Se-CQDs with high selectivity and sensitivity to Fe3+ and their application as a new fluorescence sensor for the detection of Fe3+ in aqueous systems with simple operation and fast response were explored in the present study.
  • 碳量子点(CQDs)是一类粒径小于激子波尔粒径的新型碳基荧光材料[1],具有材料来源广,毒性低,水溶性和生物相容性好,荧光强度和光催化活性高等优良特性,广泛应用于半导体、生物医学和分析检测等领域[2-5]

    纳米硒是粒径为1~100 nm的无定型红色零价单质硒,比无机硒和有机硒具有更高的抗氧化、抗癌活性和更低的毒性[6-8];但受热不稳定,易转变为热力学稳定的灰黑色三方晶系t-Se而失去活性[9]

    CQDs的合成方法目前主要有化学氧化法、微波法和水热法等[10-12],其中,水热法因操作简单,成本低,成为CQDs合成的主要方法。已有研究发现,单纯碳源合成的CQDs,荧光强度和表面活性低,而通过杂原子掺杂或表面钝化等表面修饰[13],不仅可调控CQDs的光致发光特性,更能提供CQDs与其他物质相互作用的活性位点,促进传感和催化过程[14]。目前已有铜[15]、氮[16]、磷[17]、硫[18]、硒[19]等元素掺杂成功制备出CQDs的报道。硒原子作为杂原子掺杂CQDs,不仅可调控其荧光性能,提高其荧光量子产率,还可强化或赋予CQDs功能活性[20-21]

    本团队前期采用软模板法,以绿茶、普洱茶等六大茶类水提取物和纳米聚集体、茶多糖、茶褐素等为软模板,成功制备出稳定性高、抗氧化和抗癌活性强的茶-纳米硒,其中以普洱茶稳定效果最佳[22-24]。在普洱茶-纳米硒制备过程中,生成的普洱茶-硒原子具备作为杂原子、对CQDs进行表面修饰的巨大潜质;同时,升高水浴反应温度,可促使无定型红色纳米硒转变为晶态的灰黑色三方晶系t-Se[25]。为此,本研究探讨在普洱茶-纳米硒制备的基础上,以过量的维生素C(VC)作为还原剂和碳源,以普洱茶稳定的纳米硒作为硒源,通过改变水浴加热的温度和时间,同时制备PT-Se-CQDs和单质硒。以PT-Se-CQDs为荧光探针,构建荧光传感器检测Fe3+,应用于纯净水和矿泉水样品中Fe3+含量测定,以建立一种高选择性和灵敏度的快速检测方法,应用于环境中Fe3+等的快速监测。

    普洱茶 广东省茶叶进出口公司提供,按GB/T 8303-2013《茶-磨碎试样的制备及其干物质含量测定》磨碎干茶,筛分过20~30目,备用;亚硒酸钠(Na2SeO3) Sigma-Aldrich 公司;抗坏血酸(VC) 北京普博欣生物科技有限责任公司;硫酸奎宁 上海阿拉丁生化科技有限公司;氯化钠(NaCl)、氯化镁(MgCl2)、硝酸铅(Pb(NO32)、硫酸亚铁(FeSO4) 广东广试试剂科技有限公司;氯化钙(CaCl2)、氯化镉(CdCl2)、氯化钡(BaCl2) 天津市科密欧化学试剂有限公司;氯化镍(NiCl2)、氯化钴(CoCl2)、氯化锶(SrCl2)、氯化锌(ZnCl2)、氯化铁(FeCl3)、硝酸铬(CrNO3)  天津大茂化学试剂厂;硫酸锰(MnSO4) 广东台山粤侨试剂塑料有限公司;上述使用的化学试剂均为分析纯等级以上;农夫山泉矿泉水、纯悦纯净水 超市购入。

    Milli-Q Integral 3纯水机 德国Merck-Millipore公司;AL204电子分析天平 梅特勒托利多仪器有限公司;HWS-24电热恒温水浴锅 上海一恒科学仪器有限公司;Centrifuge 5804R冷冻高速离心机 德国Eppendorf公司;Alpha 1-2 LD plus冷冻干燥机 德国Martin Christ公司;CRT970荧光分光光度计 上海仪电分析仪器公司;UV-2102C紫外-可见分光光度计 上海尤尼科有限公司;HITACHIU-2900双光束紫外分光光度计 日立高新技术公司;JEM 2100F场发射透射电镜 日本JEOL公司;Thermo Scientific Escalab 250Xi X射线光电子能谱 美国赛默飞世尔公司;Ulitma IV X射线衍射仪 日本Rigaku公司。

    参照叶锡光[22]的方法:称取4.5 g普洱茶样品,按茶水比1:50 g/mL加入100 ℃超纯水,沸水浸提30 min,每隔10 min振摇一次,浸提结束后趁热抽滤,滤液转移至250 mL容量瓶中,冷却至室温,定容,经冷冻干燥获得普洱茶水提取物冻干粉,于 −20 ℃保存。

    参照叶锡光[22]的方法稍作修改:将普洱茶水提取物冻干粉用超纯水配制成浓度为2.5 g/L的普洱茶水提取物溶液,吸取此溶液5 mL,加入7 mL超纯水和500 mmol/L的VC溶液8 mL,800 r/min磁力搅拌5 min,静置反应15 min,再加入100 mmol/L的Na2SeO3溶液5 mL,800 r/min磁力搅拌5 min,随后将混合液置于一定水浴温度中反应一定时间,反应结束后,冰浴冷却10 min,于4 ℃、6000 r/min离心10 min,分别收集上清和沉淀,上清液过0.22 μm聚醚枫(PES)滤膜后,经截留分子量为100~500 Da纤维素透析袋搅拌透析60 h(每4 h更换透析水一次),得到PT-Se-CQDs溶液,25 ℃储存备用。

    按照上述实验步骤优化反应参数,制备荧光强度高的PT-Se-CQDs。

    a. 固定加热温度为100 ℃,探究0、2、4、6、8、10、12 h不同加热时间对PT-Se-CQDs荧光强度的影响;

    b. 固定加热时间为10 h,探究40、60、80、100 ℃不同加热温度对PT-Se-CQDs荧光强度的影响。

    PT-Se-CQDs溶液经超声分散30 min,取8 μL于超薄碳网上,干燥器干燥后,采用场发射透射电镜(Transmission electron microscope,TEM),于200 kV工作电压下观测其颗粒大小及形态形貌[26]

    取适量PT-Se-CQDs溶液于铝箔纸上,干燥器干燥后,采用X射线光电子能谱(X-ray photoelectron spectroscopy,XPS)测定其元素组成,同时测定C1s高分辨图谱,分析PT-Se-CQDs的化学键。设置X射线光源为Al靶,测试功率150 W,宽谱步长1 eV,停留时间50 ms,通能为100 eV,扫描区域500×500 μm。

    取适量PT-Se-CQDs溶液于石英样品槽中,干燥器干燥后,采用X射线衍射仪(X-ray diffraction,XRD)测定其晶型结构。设置工作电压40 kV,工作电流40 mA,扫描范围10~80°,连续式步进扫描,步长为0.0131303,扫描速度12°/min[26]

    将PT-Se-CQDs溶液稀释500倍,采用HITACHIU-2900双光束分光光度计测定其紫外-可见吸收光谱。设置扫描速度400 nm/min,扫描范围200~800 nm。

    将PT-Se-CQDs溶液稀释25倍,采用CRT970荧光分光光度计测定其荧光激发光谱和荧光发射光谱。设置扫描速度为高速,灵敏度为LM2~8(当样品荧光强度响应值达到峰值时,则降低灵敏度进行测定,LM越小,荧光强度越大),狭缝宽度为10 nm,发射光谱扫描范围为350~550 nm。

    称取一定量硫酸奎宁粉末溶解于0.1 mol/L硫酸中,作为标准参照物(Φs=54.0%,365 nm)。调节硫酸奎宁溶液和PT-Se-CQDs溶液的浓度,使硫酸奎宁溶液在360 nm波长处和PT-Se-CQDs溶液在380 nm波长处的吸光值小于0.1。采用荧光分光光度计测定该浓度下硫酸奎宁溶液和PT-Se-CQDs溶液分别在激发波长为360和380 nm处的荧光发射光谱,以荧光光谱计算荧光发射峰面积,根据公式(1)计算荧光量子产率[27]

    Φx=Φs×IxIs×AsAx×(ηx)2(ηs)2
    (1)

    式中:Φ:荧光量子产率,%;Ι:荧光发射峰积分面积;A:激发波长处溶液的吸光度;η:溶剂的折射率;s:硫酸奎宁标准物;x:PT-Se-CQDs溶液。

    吸取15份稀释倍数为12.5倍的PT-Se-CQDs溶液2 mL,分别加入2 mL的NaCl、CaCl2、MgCl2、NiCl2、BaCl2、CoCl2、CdCl2、SrCl2、ZnCl2、FeCl3、FeSO4、MnSO4、CrNO3、Pb(NO32等14种金属离子溶液(2 mmol/L),以超纯水为对照,测定其荧光发射光谱。

    吸取14份稀释倍数为12.5倍的PT-Se-CQDs溶液2 mL,分别加入1 mL的FeCl3溶液(0.2 mmol/L)和NaCl、CaCl2、MgCl2、NiCl2、BaCl2、CoCl2、CdCl2、SrCl2、ZnCl2、FeSO4、MnSO4、CrNO3、Pb(NO32共13种金属离子溶液(2 mmol/L),以超纯水为对照,测定其荧光发射光谱。

    吸取11份稀释倍数为12.5倍的PT-Se-CQDs溶液2 mL,分别加入2 mL不同浓度FeCl3溶液,使其终浓度为0、10、20、30、40、50、100、150、200、250、300 μmol/L,静置反应2 min后,测定其荧光发射光谱。

    吸取18份稀释倍数为12.5倍的PT-Se-CQDs溶液2 mL,加入2 mL不同浓度FeCl3溶液,使其终浓度为0、50、100、150、200 μmol/L,充分混匀后,将混合溶液分别于21、31、41 ℃恒温水浴静置0.5 h,测定其荧光发射光谱。根据斯特恩-沃尔默(Stern-Volmer)简化方程(式2)计算猝灭常数,分析其荧光猝灭机理。

    F0F=1+KSV[Q]
    (2)

    式中:F0是不存在猝灭剂时的稳态荧光强度;F是存在猝灭剂时的稳态荧光强度;Ksv是斯特恩-沃尔默猝灭常数,L/mol;[Q]是猝灭剂的浓度,μmol/L。

    按1.2.6方法,测定矿泉水和纯净水中Fe3+含量。同时,在矿泉水和纯净水中加标10、100 μmol/L的FeCl3溶液,相同条件下测定其荧光强度并计算加标回收率。

    所有实验含3次平行,2次重复,数据结果以平均值±标准偏差表示,图表采用Origin Pro 9.0 64软件绘制。

    本研究在普洱茶-纳米硒制备的基础上,通过改变水浴加热的温度和时间,以过量VC为还原剂和碳源,普洱茶-硒原子为杂原子,同时制备出PT-Se-CQDs(上清)和单质硒(沉淀)。为确定PT-Se-CQDs制备的最适水浴加热温度和时间,采用荧光分光光度计测定了40~100 ℃水浴加热温度、0~12 h加热时间下制备的PT-Se-CQDs的荧光强度,结果如图1图2所示。

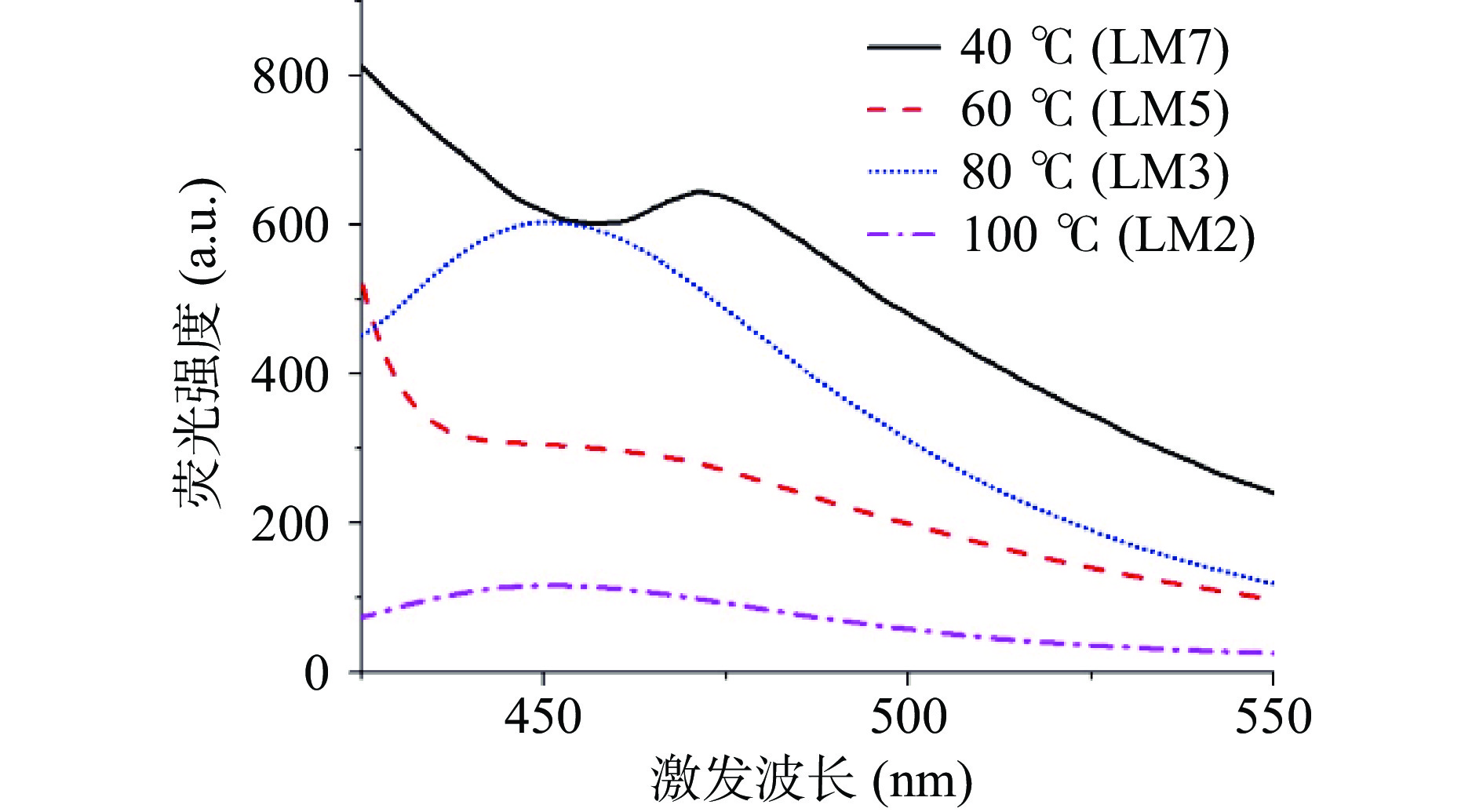

    图  1  不同加热温度下普洱茶-硒掺杂碳量子点的荧光光谱
    Figure  1.  Fluorescence spectra of Pu-erh tea nano-selenium doped carbon quantum dots at different reaction temperatures

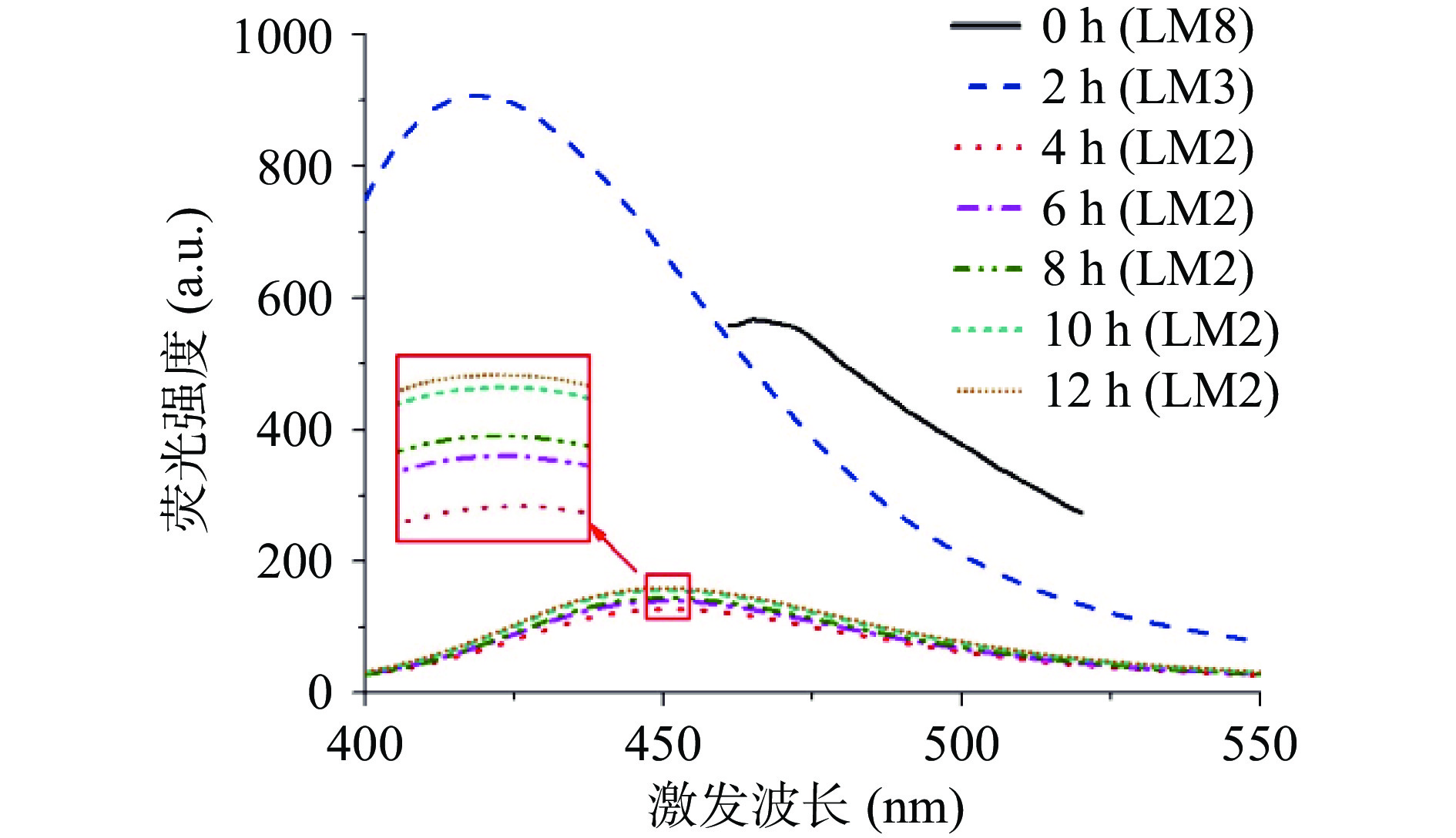

    图  2  不同加热时间下普洱茶-硒掺杂碳量子点的荧光光谱
    Figure  2.  Fluorescence spectra of Pu-erh tea nano-selenium doped carbon quantum dots at different reaction time

    图1结果表明,在40~100 ℃温度范围内,随着加热温度的升高,PT-Se-CQDs的荧光强度逐渐增大(灵敏度由7降低至2),说明温度升高有利于VC碳化、裂解,单位时间内CQDs产率高,荧光强度增强[28]。固定加热温度为100 ℃,加热时间由0 h延长至4 h时,PT-Se-CQDs的荧光强度随之增大(灵敏度由8降低至2);进一步延长加热时间至8~10 h,PT-Se-CQDs荧光强度增大;当反应时间延长至12 h,PT-Se-CQDs荧光强度变化不明显。此结果说明,当碳源(VC)含量固定时,适当延长反应时间,有利于其碳化、裂解,提高CQDs产率,提高其荧光强度。但加热时间过长,碳源消耗接近完全,其荧光强度不再增强[28]。综上结果,在普洱茶-纳米硒制备时,设置水浴加热温度100 ℃、加热时间10 h,经4 ℃、6000 r/min离心10 min,可制备得到荧光强度高的PT-Se-CQDs(上清),同时还可制备得到单质硒(沉淀)。

    在同时制备了PT-Se-CQDs和单质硒的基础上,本研究进而采用TEM、XPS表征PT-Se-CQDs形态形貌、表面元素组成和价态等基本特性;采用UV-Vis吸收光谱和荧光光谱等表征其光学特性;采用XRD表征单质硒的晶型结构。

    PT-Se-CQDs的形貌结构如图3所示。通过TEM观察,其为类球形纳米颗粒,平均直径为3.1 nm,表明本方法制备得到了具有量子尺寸的PT-Se-CQDs。经XPS测试可知(图4),PT-Se-CQDs的全谱扫描中出现O1s、C1s和Se3d的XPS特征峰(图4a),表明其含有O、C、Se元素。根据图4b的C1s分峰拟合图谱可知,在288.2、286.7、285.3及283.8 eV处分别出现C=O、C-O、C-Se及C-C/C=C键的特征峰[29],表明普洱茶-硒原子成功掺杂CQDs。图5的PT-Se-CQDs和单质硒的XRD图谱表明,PT-Se-CQDs在约25°处显示一个范围较宽的衍射峰(图5a),这主要归因于存在的石墨(002)晶面,表明此条件下合成的PT-Se-CQDs由无序碳排列组成[30]。对比三方晶系t-Se的JCPDS:06-0362卡片可知,制备得到的单质硒为三方晶系t-Se[31]

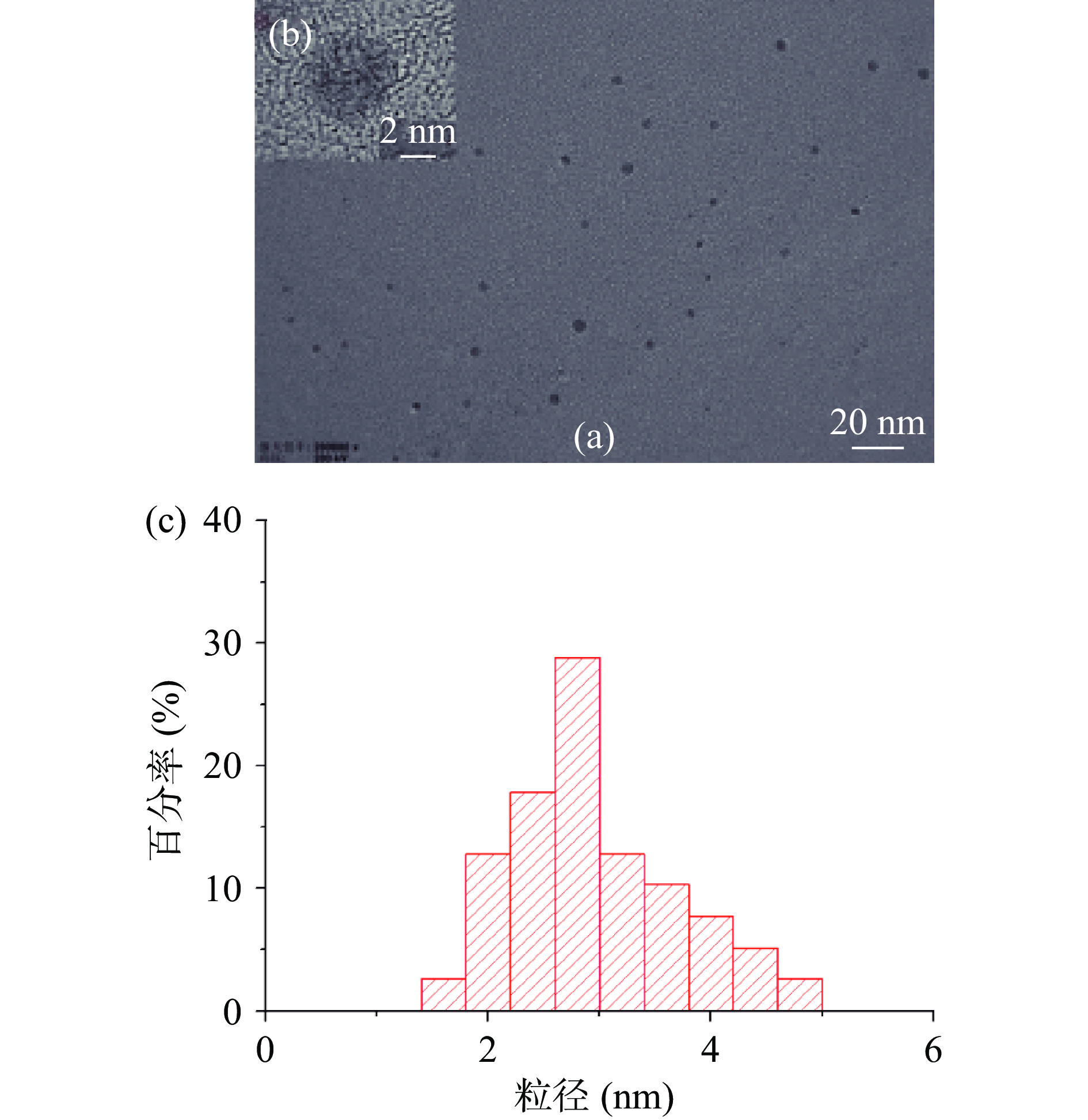

    图  3  PT-Se-CQDs透射电镜扫描图
    注:a:200000倍放大的PT-Se-CQDs形貌;b:1500000倍放大的PT-Se-CQDs形貌;c:粒径分布图。
    Figure  3.  TEM image of PT-Se-CQDs

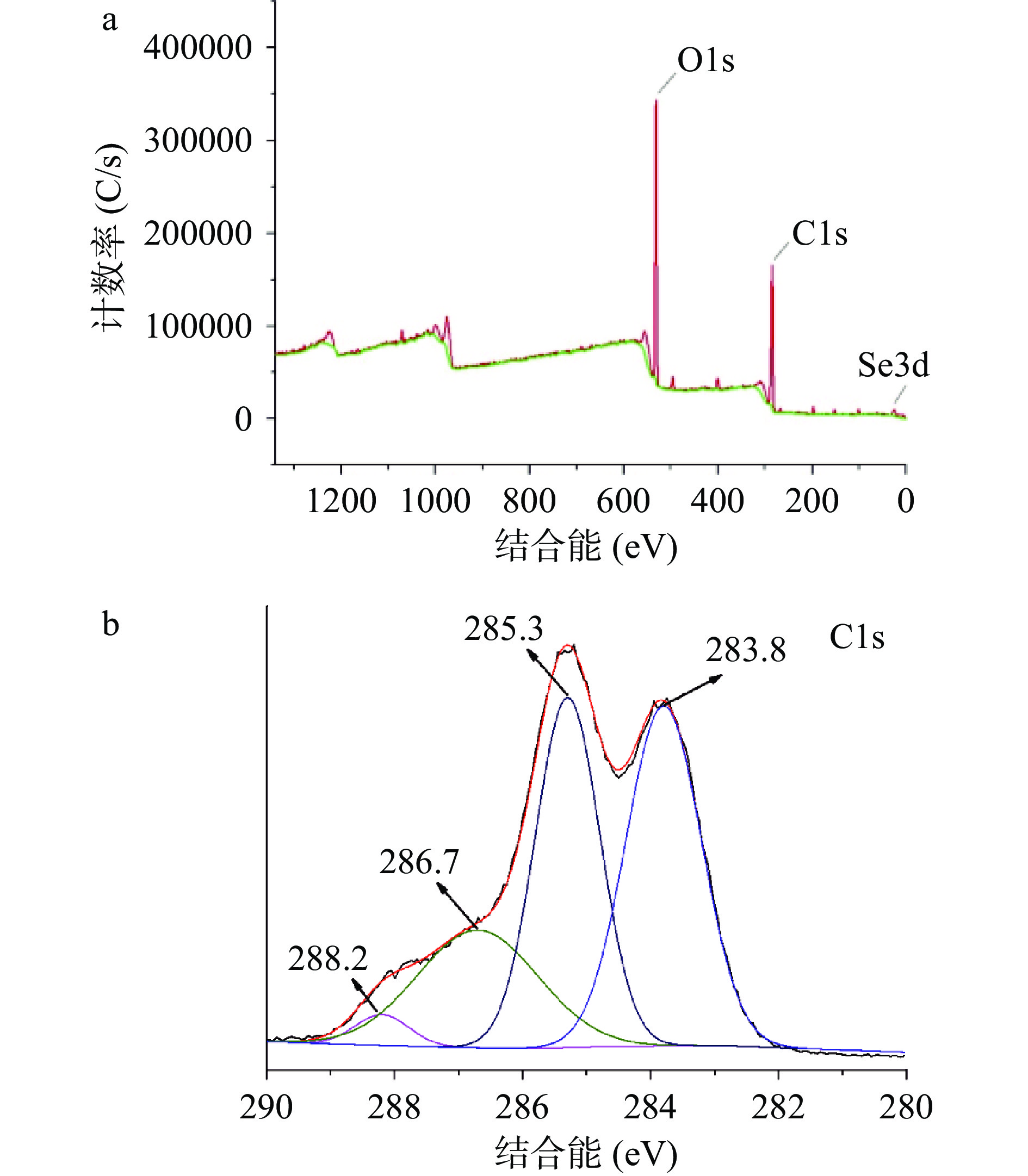

    图  4  PT-Se-CQDs的XPS全谱图(a)和C1s高分辨图(b)
    Figure  4.  XPS full-spectrum (a) and C1s high-resolution spectrum (b) of PT-Se-CQDs

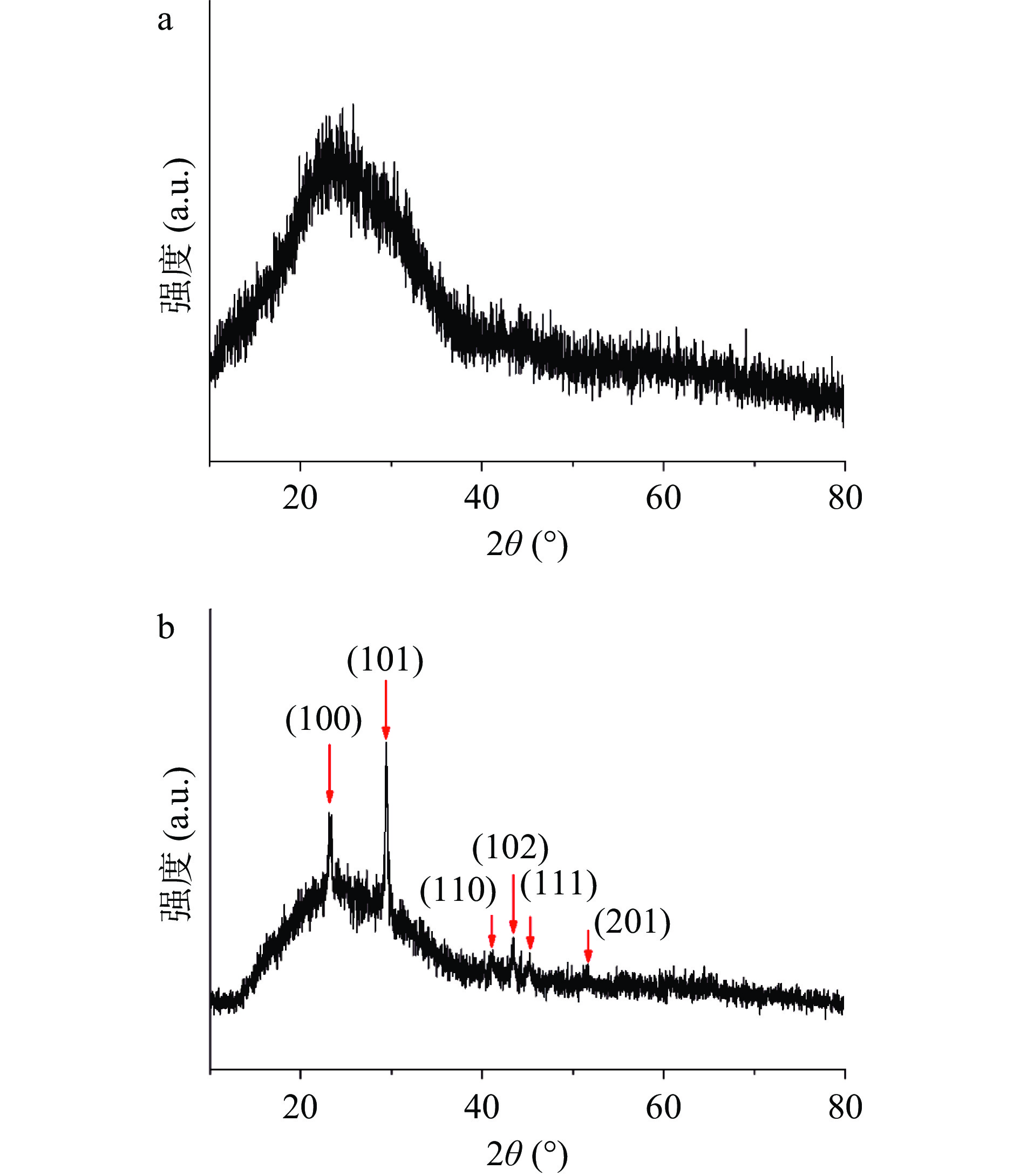

    图  5  PT-Se-CQDs(a)及单质硒(b)的XRD图
    Figure  5.  XRD spectrum of PT-Se-CQDs (a) and elemental selenium (b)

    采用UV-Vis吸收光谱和荧光光谱分析PT-Se-CQDs的光学特性。如图6a所示,PT-Se-CQDs的吸收光谱主要集中在紫外光区域,在263 nm波长处具有特征吸收峰,主要归因为碳核里C=C的π-π*跃迁[32]图6b荧光光谱图表明,PT-Se-CQDs的最大激发波长为380 nm,最大发射波长为450 nm,在365 nm紫外光照射下发蓝色荧光(图6c内嵌图)。以硫酸奎宁作为参比,根据公式(1)计算可知,PT-Se-CQDs的量子产率为3.41%。对比相同反应条件下未掺杂CQDs的荧光光谱的LM和荧光强度值可知,普洱茶-硒原子掺杂CQDs的LM降低、荧光强度值增大(图7),表明普洱茶-硒原子的掺杂提高了CQDs的荧光强度。

    图  6  PT-Se-CQDs紫外-可见吸收光谱图(a)、荧光光谱图(b)和荧光发光图(c)
    Figure  6.  Ultraviolet-visible spectra (a), fluorescence spectrum (b) and 365 nm illumination under violet light (c) of PT-Se-CQDs

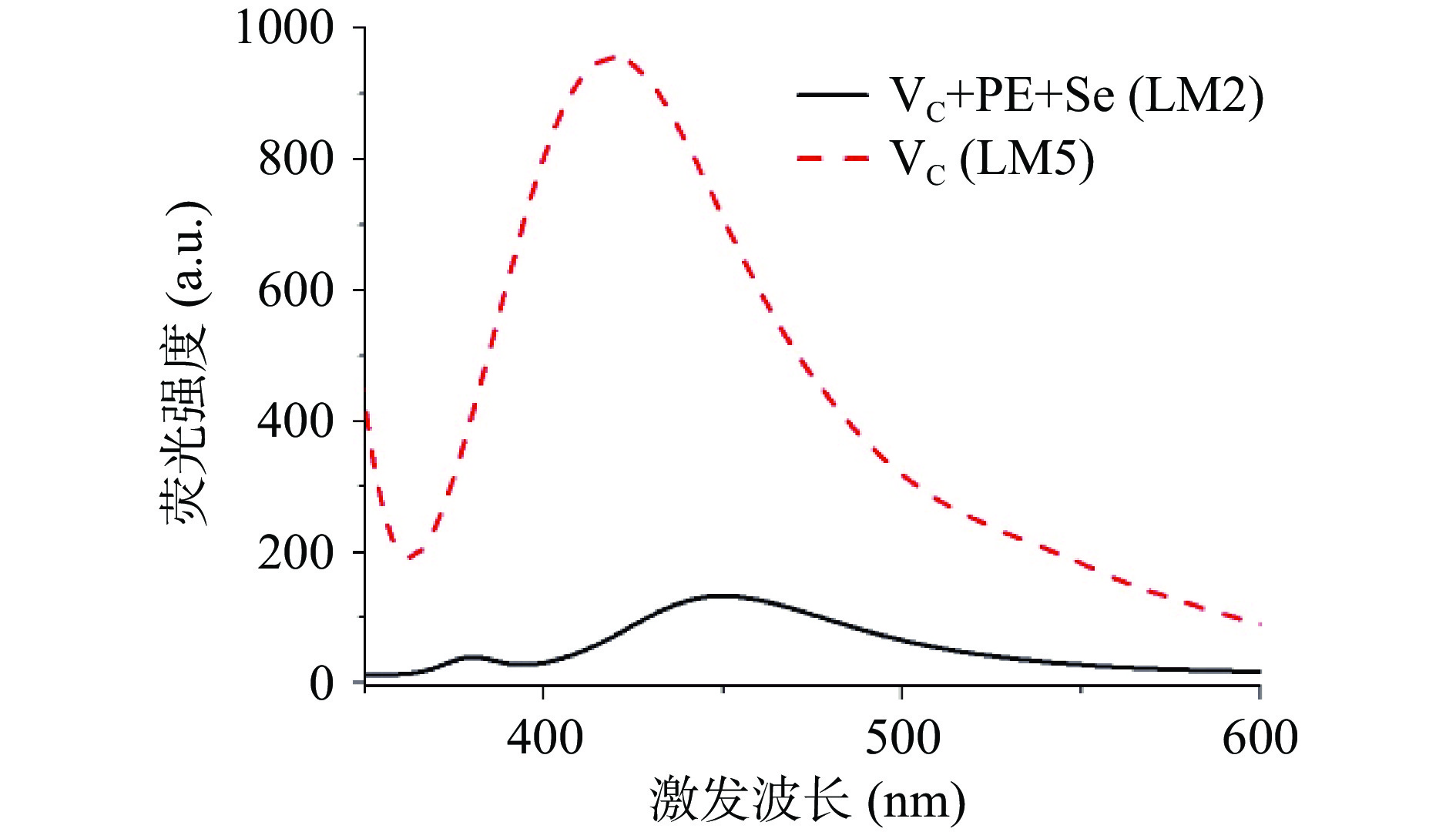

    图  7  CQDs和PT-Se-CQDs的荧光光谱图
    Figure  7.  Fluorescence spectrum of CQDs and PT-Se-CQDs

    为研究PT-Se-CQDs作为荧光探针,应用于检测金属离子的可行性,本研究探究了Na+、Ca2+、Mg2+、Ni2+、Ba2+、Co2+、Cd2+、Sr2+、Zn2+、Fe2+、Mn2+、Pb2+、Fe3+、Cr3+等14种金属离子对PT-Se-CQDs荧光强度的影响,结果如图8所示。在这14种金属离子中,仅Fe3+明显猝灭PT-Se-CQDs的荧光,分析其可能是由于Fe3+与CQDs表面官能团发生螯合作用,导致其荧光发生淬灭[33]

    图  8  添加不同种类金属离子后PT-Se-CQDs的比率荧光
    Figure  8.  Ratio of fluorescence of PT-Se-CQDs with or without the addition of metal ions

    根据上述实验结果,进一步分析Na+、Ca2+、Mg2+、Ni2+、Ba2+、Co2+、Cd2+、Sr2+、Zn2+、Fe2+、Mn2+、Pb2+、Cr3+等13种金属离子(0.5 mmol/L)对Fe3+(0.05 mmol/L)淬灭PT-Se-CQDs荧光强度的影响,结果如图9所示。在高于Fe3+浓度10倍的13种金属离子分别存在下,Fe3+作用于PT-Se-CQDs后,除Fe2+的比率荧光降低到0.6(F/F0)外,其余金属离子的荧光强度无显著变化,推测其可能是由于水体系中的Fe2+不稳定,可被部分氧化成Fe3+,从而猝灭PT-Se-CQDs的荧光所致[34]。此结果说明PT-Se-CQDs对Fe3+具有较强的离子选择性。

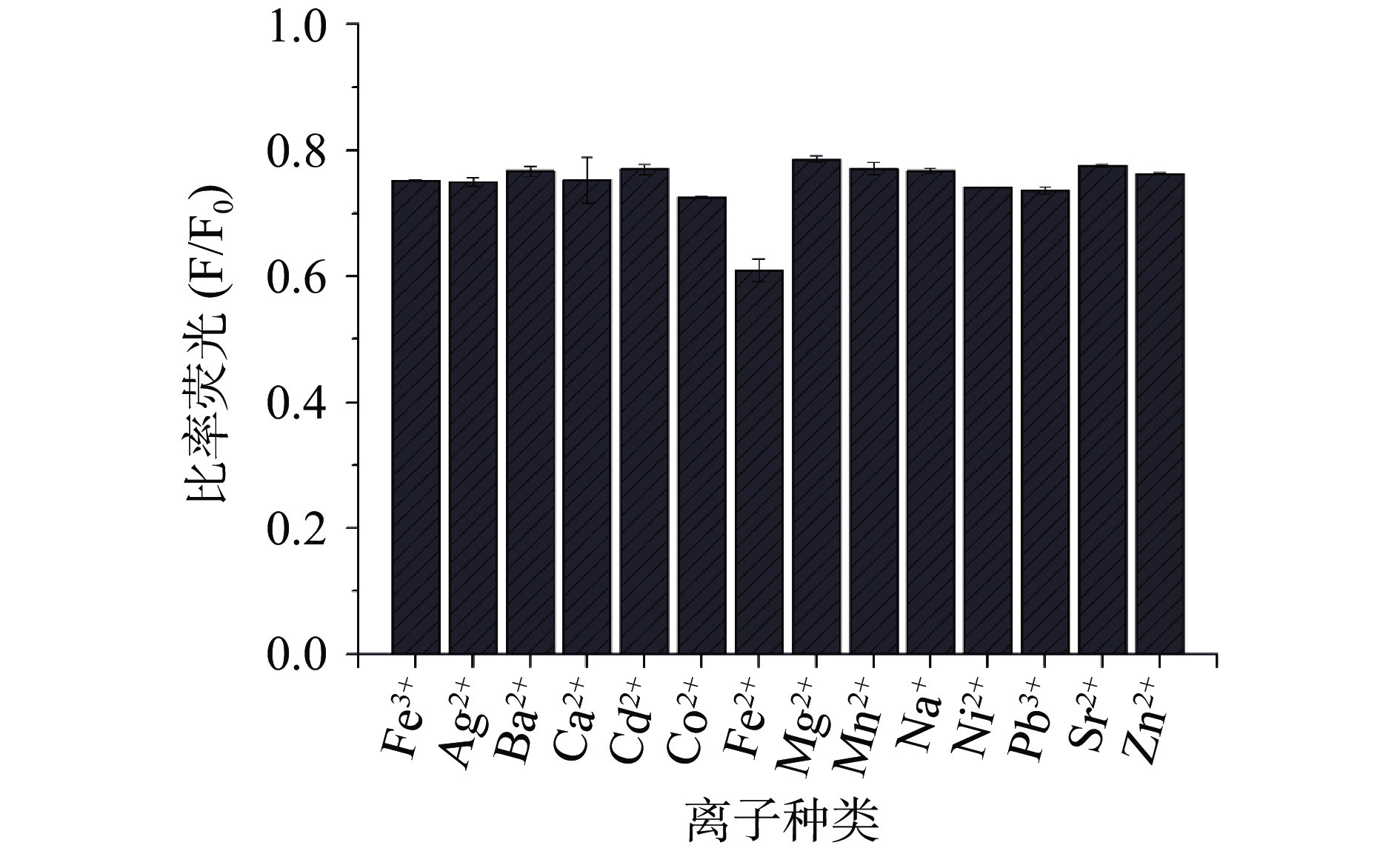

    图  9  不同金属离子与Fe3+作用于PT-Se-CQDs后的比率荧光
    Figure  9.  Ratio fluorescence of PT-Se-CQDs treated by Fe3+ in the presence of different metal ions

    在上述实验基础上,为实现Fe3+的定量检测,建立Fe3+快速检测方法,本研究测定了0~300 μmol/L浓度范围内,Fe3+作用PT-Se-CQDs荧光探针2 min后,其荧光光谱及荧光强度值,结果如图10所示。Fe3+浓度在0~300 μmol/L范围内,PT-Se-CQDs荧光强度随Fe3+浓度的增加而降低(图10a),其比率荧光与Fe3+浓度呈现良好的线性相关,0~50 μmol/L的线性方程为y=−0.0026x+1.0011,R2=0.9965;50~300 μmol/L的线性方程为y=−0.0029x+1.0151,R2=0.9958。根据线性拟合方程y=−0.0029x+1.0151(R2=0.9958)计算得到检出限为0.2621 μmol/L,均达到现行有效的GB 5749-2006及2023.4.1即将实施的GB 5749-2022生活饮用水卫生标准中规定的Fe3+水平限值0.3 mg/L (5.36 μmol/L)的检测要求[35]

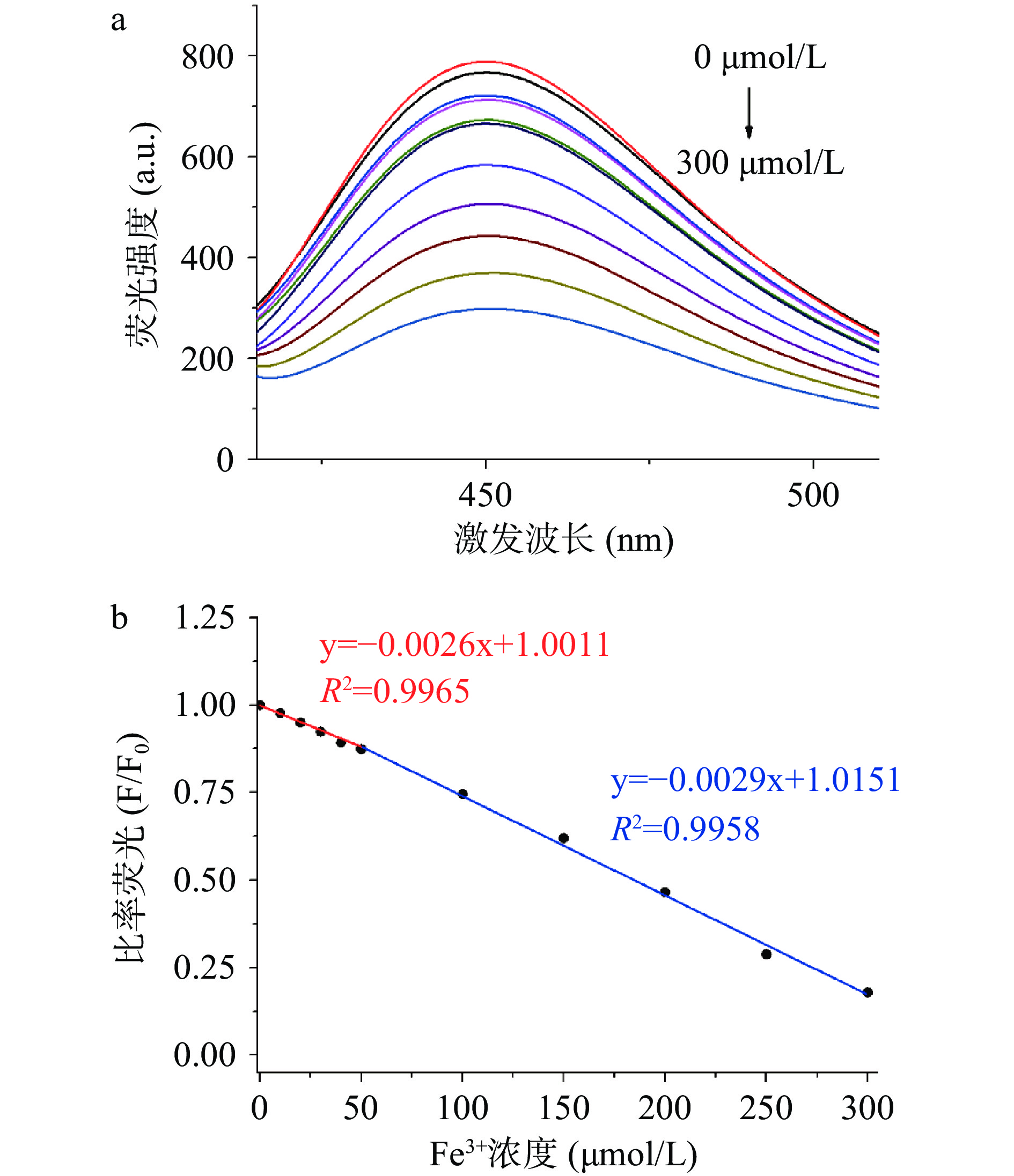

    图  10  PT-Se-CQDs荧光强度随Fe3+浓度变化的荧光光谱图(a)及线性关系图(b)
    Figure  10.  Fluorescence spectrogram (a) of PT-Se-CQDs and the linear relationship diagram (b) between the fluorescence intensity of PT-Se-CQDs and the Fe3+ concentration

    表1可见,PT-Se-CQDs荧光探针与未进行掺杂的鞣花酸探针相比,虽检出限较高,但检测范围却比其宽广;与SiCDs及CuNCs相比,检出限和检测范围均优于这两类探针;与N-CQDs相比,PT-Se-CQDs荧光探针检测Fe3+的范围虽略窄,但检出限更低。

    表  1  不同荧光探针对Fe3+的检测性能比较
    Table  1.  Comparison of detection performance of Fe3+ by different fluorescence probes
    荧光探针检测范围(μmol/L)检出限(μmol/L)参考文献
    鞣花酸0.08~1.100.0630冯焕然等[36]
    SiQDs2.50~250.000.6760余佩林等[37]
    CuNCs0~50.000.6900Sabarinathan等[38]
    N-CQDs0~400.009.2500蒋云霞等[39]
    PT-Se-CQDs0~300.000.2621本研究
    下载: 导出CSV
    | 显示表格

    PT-Se-CQDs荧光探针检测Fe3+具有高选择性和高灵敏度。为深入分析PT-Se-CQDs对Fe3+荧光检测的作用机制,本研究测定了0~200 μmol/L的Fe3+在21、31、41 ℃下猝灭PT-Se-CQDs的荧光强度,根据斯特恩-沃尔默方程计算猝灭常数,分析其荧光猝灭类型,结果如图11所示。在21、31、41 ℃反应温度下,不同浓度Fe3+与PT-Se-CQDs的荧光强度遵循斯特恩-沃尔默方程,经计算发现,随反应温度升高,荧光猝灭常数Ksv减小,呈反比变化(表2)。王靖蕊等[40]以半乳甘露聚糖与人血清白蛋白的研究证明,其内源性荧光猝灭常数随温度的升高而减小,呈反比变化,即为荧光静态淬灭。综合这些研究结果可知,本研究的Fe3+与PT-Se-CQDs的荧光猝灭类型亦为静态猝灭。

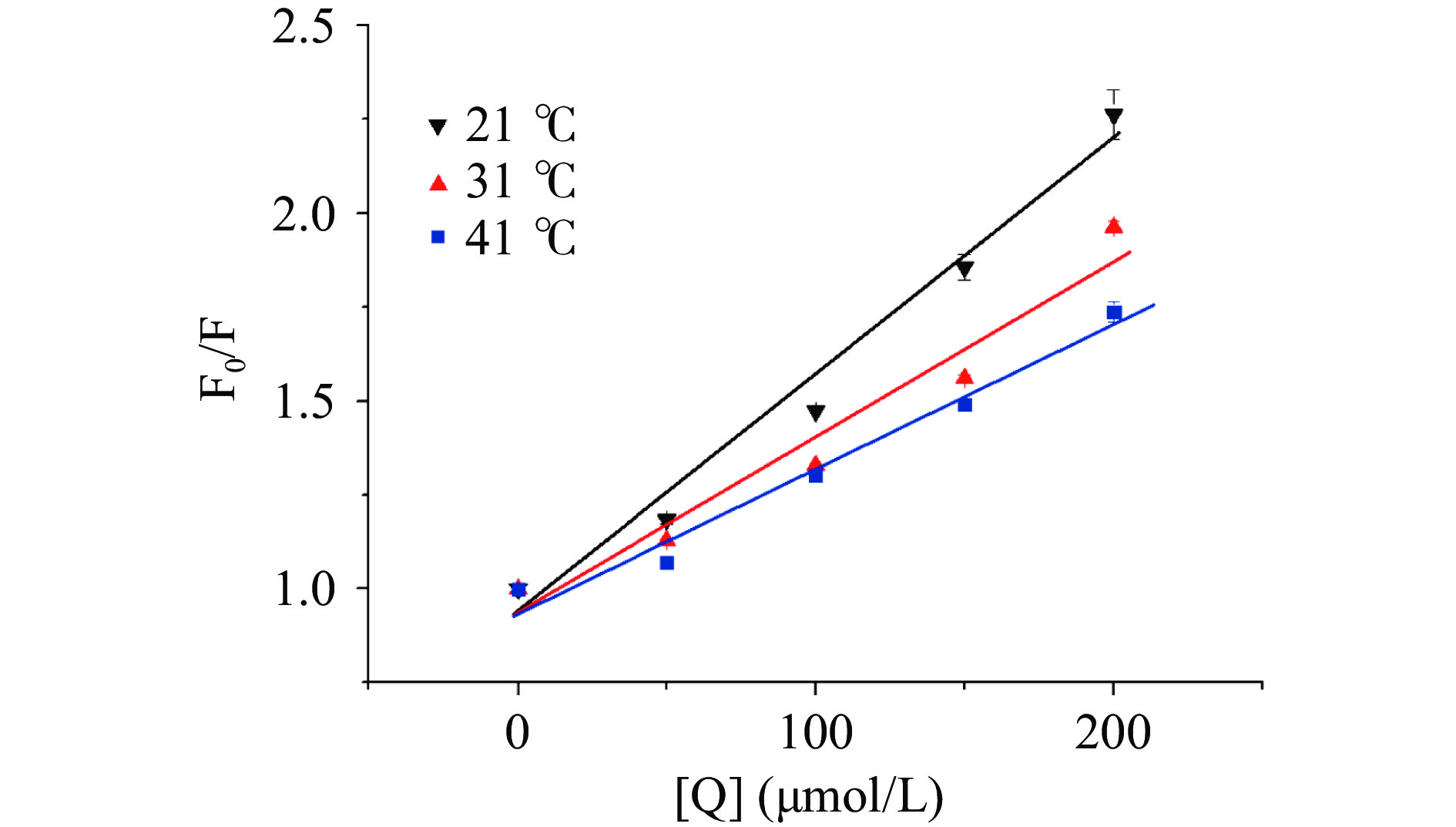

    图  11  不同温度下Fe3+和PT-Se-CQDs相互作用的斯特恩-沃尔默图
    Figure  11.  Stern-Volmer plots for the quenching of Fe3+ by PT-Se-CQDs at different temperatures
    表  2  Fe3+与PT-Se-CQDs在不同温度下相互作用的猝灭常数Ksv
    Table  2.  Quenching constants Ksv for the interaction of Fe3+ by PT-Se-CQDs at different temperatures
    温度(℃)Ksv·103(L/mol)R2
    216.3928±0.84230.9795
    314.7116±0.74540.9569
    413.7915±0.58560.9754
    下载: 导出CSV
    | 显示表格

    为进一步评估该检测方法的准确性和实用性,本研究以PT-Se-CQDs为荧光探针,检测纯净水及矿泉水样品中Fe3+含量,通过加标10、100 μmol/L的Fe3+,测定其回收率,结果如表3所示,结合Fe3+添加值为0时,PT-Se-CQDs的荧光强度计算得出,纯净水中Fe3+浓度为0,加标回收率范围为90.93%~104.56%,RSD小于8.15%。矿泉水中Fe3+浓度为4.24±2.66 μmol/L,加标回收率为84.53%~113.90%,RSD小于4.00%,表明该检测方法满足分析要求,可实现对实际样品中Fe3+的定量、快速检测。

    表  3  PT-Se-CQDs对实际样品中Fe3+的检测能力
    Table  3.  The detection ability of PT-Se-CQDs in the detection of Fe3+ in real samples
    样品添加值(μmol/L)检出值(μmol/L)回收率(%)RSD(%)
    纯净水1010.46104.568.15
    10090.9390.933.28
    矿泉水1011.39113.904.00
    10084.5384.531.14
    下载: 导出CSV
    | 显示表格

    本研究基于普洱茶-纳米硒制备的前期研究基础得出如下结论:以普洱茶水提取物稳定分散的普洱茶-硒原子为掺杂原子,以过量的维生素C(VC)作为还原剂和碳源,在水浴加热温度为100 ℃、加热时间为10 h条件下,同时制备得到PT-Se-CQDs和三方晶系t-Se;PT-Se-CQDs和单质硒的基本特性和光学特性表征确定,所制备的PT-Se-CQDs呈类球形结构、平均直径为3.1 nm、荧光量子产率为3.41%,普洱茶-硒掺杂提高了CQDs的荧光强度;基于Fe3+显著猝灭PT-Se-CQDs荧光的特性,成功构建了高选择性和灵敏度的Fe3+检测荧光传感器,建立了Fe3+快速检测方法,检测范围为0~300 μmol/L,检出限为0.2621 μmol/L,其猝灭机理符合静态结合猝灭;以此方法检测纯净水和矿泉水等实际样品中的Fe3+,回收率高达90.93%~104.56%和84.53%~113.90%,RSD小于8.15%和4.00%,该方法达到生活饮用水Fe3+卫生检测要求,具有积极的应用前景。

  • 图  1   不同加热温度下普洱茶-硒掺杂碳量子点的荧光光谱

    Figure  1.   Fluorescence spectra of Pu-erh tea nano-selenium doped carbon quantum dots at different reaction temperatures

    图  2   不同加热时间下普洱茶-硒掺杂碳量子点的荧光光谱

    Figure  2.   Fluorescence spectra of Pu-erh tea nano-selenium doped carbon quantum dots at different reaction time

    图  3   PT-Se-CQDs透射电镜扫描图

    注:a:200000倍放大的PT-Se-CQDs形貌;b:1500000倍放大的PT-Se-CQDs形貌;c:粒径分布图。

    Figure  3.   TEM image of PT-Se-CQDs

    图  4   PT-Se-CQDs的XPS全谱图(a)和C1s高分辨图(b)

    Figure  4.   XPS full-spectrum (a) and C1s high-resolution spectrum (b) of PT-Se-CQDs

    图  5   PT-Se-CQDs(a)及单质硒(b)的XRD图

    Figure  5.   XRD spectrum of PT-Se-CQDs (a) and elemental selenium (b)

    图  6   PT-Se-CQDs紫外-可见吸收光谱图(a)、荧光光谱图(b)和荧光发光图(c)

    Figure  6.   Ultraviolet-visible spectra (a), fluorescence spectrum (b) and 365 nm illumination under violet light (c) of PT-Se-CQDs

    图  7   CQDs和PT-Se-CQDs的荧光光谱图

    Figure  7.   Fluorescence spectrum of CQDs and PT-Se-CQDs

    图  8   添加不同种类金属离子后PT-Se-CQDs的比率荧光

    Figure  8.   Ratio of fluorescence of PT-Se-CQDs with or without the addition of metal ions

    图  9   不同金属离子与Fe3+作用于PT-Se-CQDs后的比率荧光

    Figure  9.   Ratio fluorescence of PT-Se-CQDs treated by Fe3+ in the presence of different metal ions

    图  10   PT-Se-CQDs荧光强度随Fe3+浓度变化的荧光光谱图(a)及线性关系图(b)

    Figure  10.   Fluorescence spectrogram (a) of PT-Se-CQDs and the linear relationship diagram (b) between the fluorescence intensity of PT-Se-CQDs and the Fe3+ concentration

    图  11   不同温度下Fe3+和PT-Se-CQDs相互作用的斯特恩-沃尔默图

    Figure  11.   Stern-Volmer plots for the quenching of Fe3+ by PT-Se-CQDs at different temperatures

    表  1   不同荧光探针对Fe3+的检测性能比较

    Table  1   Comparison of detection performance of Fe3+ by different fluorescence probes

    荧光探针检测范围(μmol/L)检出限(μmol/L)参考文献
    鞣花酸0.08~1.100.0630冯焕然等[36]
    SiQDs2.50~250.000.6760余佩林等[37]
    CuNCs0~50.000.6900Sabarinathan等[38]
    N-CQDs0~400.009.2500蒋云霞等[39]
    PT-Se-CQDs0~300.000.2621本研究
    下载: 导出CSV

    表  2   Fe3+与PT-Se-CQDs在不同温度下相互作用的猝灭常数Ksv

    Table  2   Quenching constants Ksv for the interaction of Fe3+ by PT-Se-CQDs at different temperatures

    温度(℃)Ksv·103(L/mol)R2
    216.3928±0.84230.9795
    314.7116±0.74540.9569
    413.7915±0.58560.9754
    下载: 导出CSV

    表  3   PT-Se-CQDs对实际样品中Fe3+的检测能力

    Table  3   The detection ability of PT-Se-CQDs in the detection of Fe3+ in real samples

    样品添加值(μmol/L)检出值(μmol/L)回收率(%)RSD(%)
    纯净水1010.46104.568.15
    10090.9390.933.28
    矿泉水1011.39113.904.00
    10084.5384.531.14
    下载: 导出CSV
  • [1] 张绮彤, 刘天行, 王宇. 小身材大光芒-碳量子点的荧光应用[J]. 大学化学,2021,36(10):165−169. [ZHANG Q T, LIU T X, WANG Y. Small body, big light: Applications of carbon quantum dots[J]. University of Chemistry,2021,36(10):165−169.
    [2]

    CHUANG C, CHEN Y, KANG C, et al. Toxic or not toxic, that is the carbon quantum dot's question: A comprehensive evaluation with zebrafish embryo, eleutheroembryo and adult models[J]. Polymers,2021,13(10):1598−1598. doi: 10.3390/polym13101598

    [3]

    CHEN C C, FAN T. Study on carbon quantum dots/BiFeO3 heterostructures and their enhanced photocatalytic activities under visible light irradiation[J]. Journal of Materials Science-Materials in Electronics, 2017, 28(14): 10019-10027.

    [4] 刘文, 李婷婷, 张冰, 等. 基于绿色天然物质合成荧光碳点及其性质和应用综述[J]. 材料导报,2019,33(3):402−409. [LIU W, LI T T, ZHANG B, et al. Properties and applications of fluorescent carbon dots prepared by green natural substances: A review[J]. Materials Reports,2019,33(3):402−409. doi: 10.11896/cldb.201903005
    [5] 徐韶梅. 新型荧光碳量子点材料的合成及其在生物传感和细胞成像中的应用[D]. 长春: 吉林大学, 2021

    XU S M. Synthesis and application of novel fluorescent carbon quantum dots in biosensoring and celluar imaging[D]. Changchun: Jilin University, 2021.

    [6] 张劲松, 高学云, 黄镇, 等. 活性红色单质硒的制备方法[P]. 安徽: CN1059638C, 2000-12-20

    ZHANG J S, GAO X Y, HUANG Z, et al. Preparation method of active red elemental selenium[P]. Anhui: CN1059638C, 2000-12-20.

    [7] 王亮, 单安山. 纳米硒在动物营养中的研究进展[J]. 中国畜牧兽医,2011,38(4):38−42. [WANG L, SHAN A S. Recent advances of nano-selenium animal nutrition[J]. China Animal Husbandry & Verinary Medicine,2011,38(4):38−42.
    [8]

    TANG X Y, YU S J, GUO X M, et al. Betacyanins functionalized selenium nanoparticles inhibit HepG2 cells growth via mitochondria-mediated pathway[J]. Journal of Functional Foods,2021,78:104359. doi: 10.1016/j.jff.2021.104359

    [9]

    LUO L B, JIE J S, CHEN Z H, et al. Photoconductive properties of selenium nanowire photodetectors[J]. Journal of Nanoscience & Nanotechnology,2009,9(11):6292−6298.

    [10]

    LUO B, YANG H, ZHUO B, et al. Facile synthesis of luffa sponge activated carbon fiber based carbon quantum dots with green fluorescence and their application in Cr (VI) determination[J]. ACS Omega,2020,5(10):5540−5547. doi: 10.1021/acsomega.0c00195

    [11] 王晞. 两种碳点的微波法合成及其性质[D]. 武汉: 武汉大学, 2019

    WANG X. Microwave-assisted synthesis of two kinds of carbon dots and their properties[D]. Wuhan: Wuhan University, 2019.

    [12]

    GUO Z, LIU X, YU H, et al. Continuous response fluorescence sensor for three small molecules based on nitrogen-doped carbon quantum dots from prunus lannesiana and their logic gate operation[J]. Spectrochim Acta A Mol Biomol Spectrosc,2021,257:119774. doi: 10.1016/j.saa.2021.119774

    [13] 郭涛. 氮掺杂碳量子点的制备及表面活性应用[D]. 太原: 太原理工大学, 2021

    GUO T. Preparation and surface activity application of nitrogen-doped carbon quantum dots[D]. Taiyuan: Taiyuan University of Technology, 2021.

    [14]

    WANG C J, WANG Y B, SHI H X, et al. A strong blue fluorescent nanoprobe for highly sensitive and selective detection of mercury (II) based on sulfur doped carbon quantum dots[J]. Materials Chemistry & Physics,2019,232:145−151.

    [15] 司晓晶, 邓卢辰, 徐鑫, 等. 香兰素的铜掺杂碳量子点的荧光法检测[J]. 食品工业科技,2022,43(7):280−285. [SI X J, DENG L C, XU X, et al. Fluorescence detection of vanillin by copper doped carbon quantum dots[J]. Science and Technology of Food Industry,2022,43(7):280−285. doi: 10.13386/j.issn1002-0306.2021060242
    [16]

    LI R R, ZHU Z K, PAN P, et al. One-step synthesis of nitrogen-doped carbon quantum dots for paper-based electrochemiluminescence detection of Cu2+ ions[J]. Microchemical Journal,2022,174:107057. doi: 10.1016/j.microc.2021.107057

    [17]

    CHIKKILI V R, GOPI K, SELVARAJ P, et al. Phosphorous doped carbon quantum dots as an efficient solid state electrochemiluminescence platform for highly sensitive turn-on detection of Cu2+ ions[J]. Electrochimica Acta,2020,331:135391. doi: 10.1016/j.electacta.2019.135391

    [18]

    JING X, WU J, WANG H H, et al. Application of deep eutectic solvent-based extraction coupled with an S-CQD fluorescent sensor for the determination of pirimicarb in cereals[J]. Food Chemistry,2022,370:1313360.

    [19]

    CHAUHAN P, CHAUDHARY S. One step production of Se doped carbon dots for rapid sensing of tetracycline in real water sample[J]. Optical Materials,2021,121:111638. doi: 10.1016/j.optmat.2021.111638

    [20]

    LI F, LI T, SUN C, et al. Selenium-doped carbon quantum dots for free-radical scavenging[J]. Angewandte Chemie,2017,129(33):10042−10046. doi: 10.1002/ange.201705989

    [21]

    HUANG G, LIN Y, ZHANG L, et al. Synthesis of sulfur-selenium doped carbon quantum dots for biological imaging and scavenging reactive oxygen species[J]. Scientific Reports,2019,9:19651. doi: 10.1038/s41598-019-55996-w

    [22] 叶锡光. 茶-纳米硒构建、表征及其应用研究[D]. 广州: 华南农业大学, 2018

    YE X G. Construction, characterization and application of tea nano-selenium stabled by tea nano-aggregates[D]. Guangzhou: South China Agricultural University, 2018.

    [23] 穆静静. 茶多糖—纳米硒构建、表征及抗癌特性研究[D]. 广州: 华南农业大学, 2019

    MU J J. Construction, characterization and anticancer properties of tea polysaccharide-nano-selenium[D]. Guangzhou: South China Agricultural University, 2019.

    [24] 林晓蓉, 黄欣琪, 李斌, 等. 利用茶褐素制备纳米硒的方法及制备而成的纳米硒[P]. 广东: CN109941976A, 2019-06-28

    LIN X R, HUANG X Q, LI B, et al. Method for preparing nano-selenium by theacin and the nano-selenium prepared [P]. Guangdong: CN109941976A, 2019-06-28.

    [25] 张建花. 不同形貌和粒度纳米硒的制备及其相变热力学性质的研究[D]. 太原: 太原理工大学, 2018

    ZHANG J H. Researches into preparation of nano-Se with different morphologies and sizes and its thermodynamics properties transitions[D]. Taiyuan: Taiyuan University of Technology, 2018.

    [26] 李家耀, 韩维杰, 杨周平, 等. 土豆基碳量子点的制备、Mn掺杂及在Ag+检测中的应用[J]. 人工晶体学报,2021,50(11):2093−2102. [LI J Y, HAN W J, YANG Z P, et al. Synthesis of potato-based carbon quantum dots, Mn doping and their application in Ag+ detection[J]. Journal of Synthetic Crystals,2021,50(11):2093−2102. doi: 10.3969/j.issn.1000-985X.2021.11.013
    [27] 赵鸿宾, 冷天翠, 刘晓梦, 等. 微波法制备猕猴桃生物质碳点及应用于金银花中Fe3+的检测[J]. 食品工业科技,2022,43(3):246−253. [ZHAO H B, LENG T C, LIU X M, et al. Preparation of kiwifruit biomass carbon dots by microwave method and application of Fe+ detection in honeysuckle[J]. Science and Technology of Food Industry,2022,43(3):246−253.
    [28] 杨继亮, 蒋倩倩, 岳贤田. 高荧光量子产率掺氮碳量子点的制备及表征[J]. 化工新型材料,2021,49(12):133−136. [YANG J L, JIANG Q Q, YUE X T. Preparation and characterization of highly photoluminescent quantum yield N-CQDs[J]. New Chemical Materials,2021,49(12):133−136.
    [29] 黄国杰. 硫硒掺杂碳量子点的合成及其应用的探究[D]. 广州: 广东药科大学, 2020

    HUANG G J. Study on synthesis and application of sulfur-selenium doped carbon quantum dots[D]. Guangzhou: Guangdong Pharmaceutical University, 2020.

    [30]

    VYAS Y, CHUNDAWAT P, DHARMENDRA, et al. Green and facile synthesis of luminescent CQDs from pomegranate peels and its utilization in the degradation of azure b and amido black 10b by decorating it on CuO nanorods[J]. Chemistry Select,2021,6(33):8566−8580.

    [31] 牛一凡, 杨赢, 杨文韬. 水热法合成一维硒纳米材料及其力学性能分析[J]. 无机化学学报,2016,32(12):2129−2135. [NIU Y F, YANG Y, YANG W T. Hydrothermal synthesis and nanomechanical performance of one-dimensional selenium nanosructtures[J]. Chinese Journal of Inorganic Chemistry,2016,32(12):2129−2135.
    [32]

    HOLA K, SUDOLSKA M, KALYTCHUK S, et al. Graphitic nitrogen triggers red fluorescence in carbon dots[J]. ACS Nano,2017,11(12):12402−12410. doi: 10.1021/acsnano.7b06399

    [33]

    GAO X, ZHOU X, MA Y, et al. Facile and cost-effective preparation of carbon quantum dots for Fe3+ ion and ascorbic acid detection in living cells based on the "on-off-on" fluorescence principle[J]. Applied Surface Science,2019,469:911−916. doi: 10.1016/j.apsusc.2018.11.095

    [34] 刘昌岭, 朱志刚, 贺行良, 等. 重铬酸钾氧化-硫酸亚铁滴定法快速测定海洋沉积物中有机碳[J]. 岩矿测试,2007(3):205−208. [LIU C L, ZHU Z G, HE X L, et al. Rapid determination of organic carbon in marine sediment samples by potassium dichromate oxidation-ferrous sulphate titrimetry[J]. Rock And Mineral Analysis,2007(3):205−208. doi: 10.3969/j.issn.0254-5357.2007.03.008
    [35] 中国国家标准化管理委员会. GB 5749-2006 生活饮用水卫生标准[S]. 2006

    Standardization Administration of China. GB 5749-2006 Standards for drinking water quality[S]. 2006.

    [36] 冯焕然, 赖家平, 孙慧, 等. 以鞣花酸为荧光探针的水体中二/三价铁离子的检测[J]. 分析测试学报,2019,38(5):581−585. [FENG H R, LAI J P, SUN H, et al. Detection of ferrous/ferric ions in aqueous phase using ellagic acid as fluorescent probe[J]. Journal of Instrumental Analysis,2019,38(5):581−585. doi: 10.3969/j.issn.1004-4957.2019.05.013
    [37] 余佩林, 陈磊, 刘军, 等. 具有荧光特性的硅量子点合成及在铁离子检测中应用[J]. 西南民族大学学报(自然科学版),2021,47(2):149−153. [YU P L, CHEN L, LIU J, et al. Highly fluorescent silicon quantum dots: Synthesis and application in ferric ions detection[J]. Journal of Southwest Minzu University (Natural Science Edition),2021,47(2):149−153.
    [38]

    SABARINATHAN D, SHARMA A S, AGYEKU A A, et al. Thunnus albacares protein-mediated synthesis of water-soluble copper nanoclusters as sensitive fluorescent probe for Ferric ion detection[J]. Journal of Molecular Structure,2022,1254:132333. doi: 10.1016/j.molstruc.2022.132333

    [39] 蒋云霞, 李艳, 刘柏松, 等. 一步合成氮掺杂的碳量子点并用于对Fe3+的检测[J]. 化工技术与开发,2020,49(11):10−14. [JIANG Y X, LI Y, LIU B S, et al. One-step synthesis of nitrogen-doped carbon quantum dots for Fe3+ detection[J]. Technology & Development of Chemical Industry,2020,49(11):10−14. doi: 10.3969/j.issn.1671-9905.2020.11.004
    [40] 王靖蕊, 彭佳敏, 代成, 等. 基于光谱和分子模拟研究半乳甘露聚糖和人血清白蛋白的相互作用[J]. 食品工业科技,2022,43(2):42−49. [WANG J R, PENG J M, DAI C, et al. Study on the interaction mechanism between galactomannan and human serum albumin by spectroscopy and molecular docking[J]. Science and Technology of Food Industry,2022,43(2):42−49. doi: 10.13386/j.issn1002-0306.2021040093
  • 期刊类型引用(0)

    其他类型引用(1)

图(11)  /  表(3)
计量
  • 文章访问数:  355
  • HTML全文浏览量:  76
  • PDF下载量:  24
  • 被引次数: 1
出版历程
  • 收稿日期:  2022-04-23
  • 网络出版日期:  2022-12-01
  • 刊出日期:  2023-01-31

目录

/

返回文章
返回
x 关闭 永久关闭
